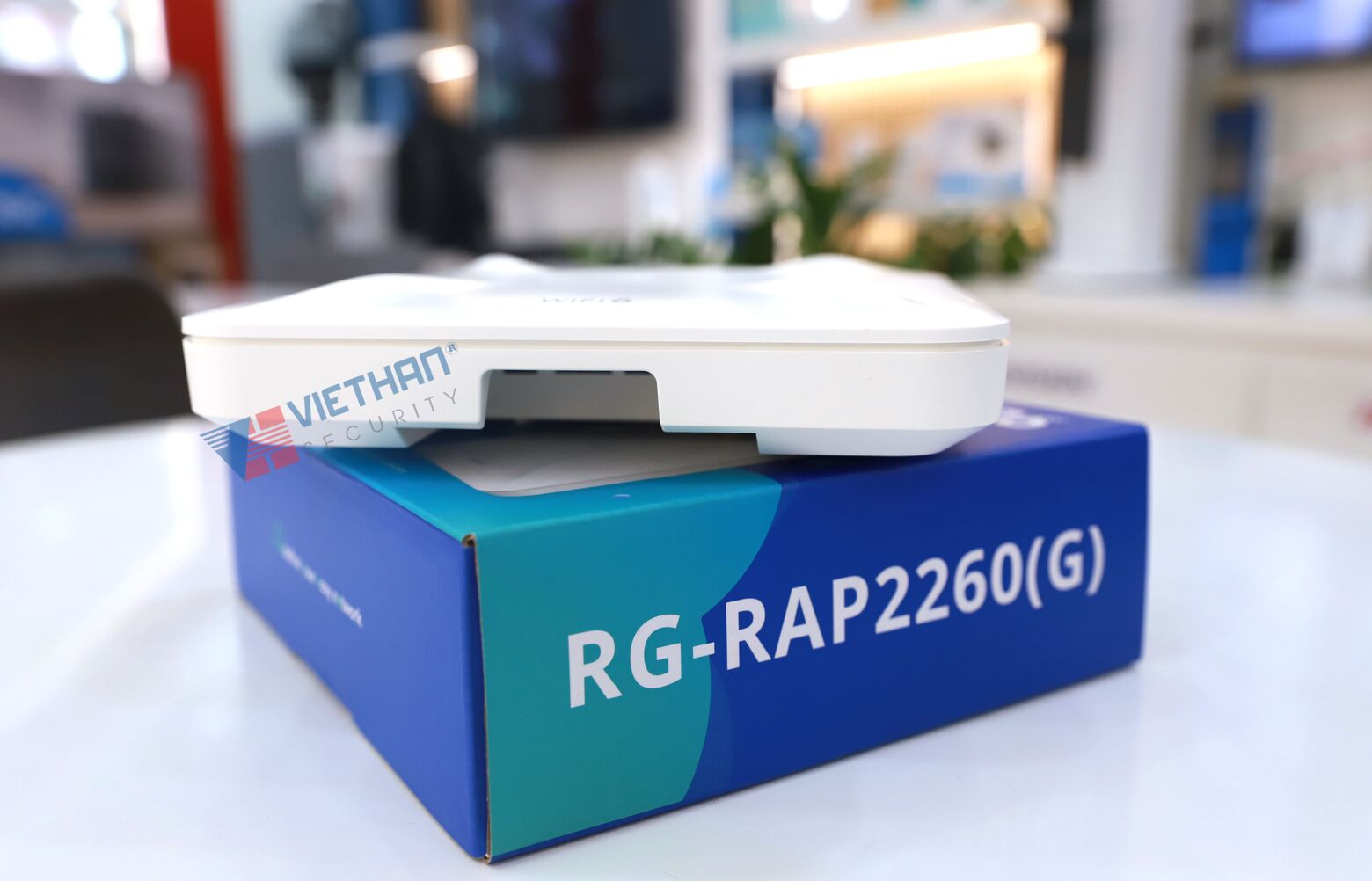

Model | RG-RAP2260(G) | |
Hardware specifications | ||
Radio | Dual-stream dual-band | |
Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n | |
Operating Bands | 802.11b/g/n/ax :2.4G ~ 2.4835GHz 802.11a/n/ac/ax : 5G:5.150~5.350GHz,5.725~5.850GHz (country specific) |
|
Antenna | Internal antennas(2.4G: 3dBi,5G: 3dBi) | |
Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO | |
Max Throughput | Up to 574Mbps at 2.4G Up to 1201Mbps at 5G 1.775Gbp per AP |
|
Modulation | OFDM:BPSK@6/9Mbps,QPSK@12/18Mbps,16QAM@24Mbps,64QAM@48/54Mbps DSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps MIMO-OFDM:BPSK,QPSK,16QAM ,64QAM,256QAM and1024QAM OFDMA |
|
Receive Sensitivity | 11b:-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps) 11a/g:-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps) 11n:-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15) 11ac:20MHz:-88dBm(MCS0), -63dBm(MCS9) 11ac:40MHz:-85dBm(MCS0), -60dBm(MCS9) 11ac:80MHz:-85dBm(MCS0), -60dBm(MCS9) 11ax:80MHz:-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11) |
|
Maximum Transmit Power | 5.725~5.850GHz:≤20dBm (EIRP) 5.150~5.250GHz:≤20dBm (EIRP) 2.4~2.4835GHz:≤20dBm (EIRP) |
|
Adjustable Power | 1dBm | |
Dimensions | 194mm×194mm×35mm (excluding mounting kits) | |
Weight | 0.56kg (excluding mounting kits) | |

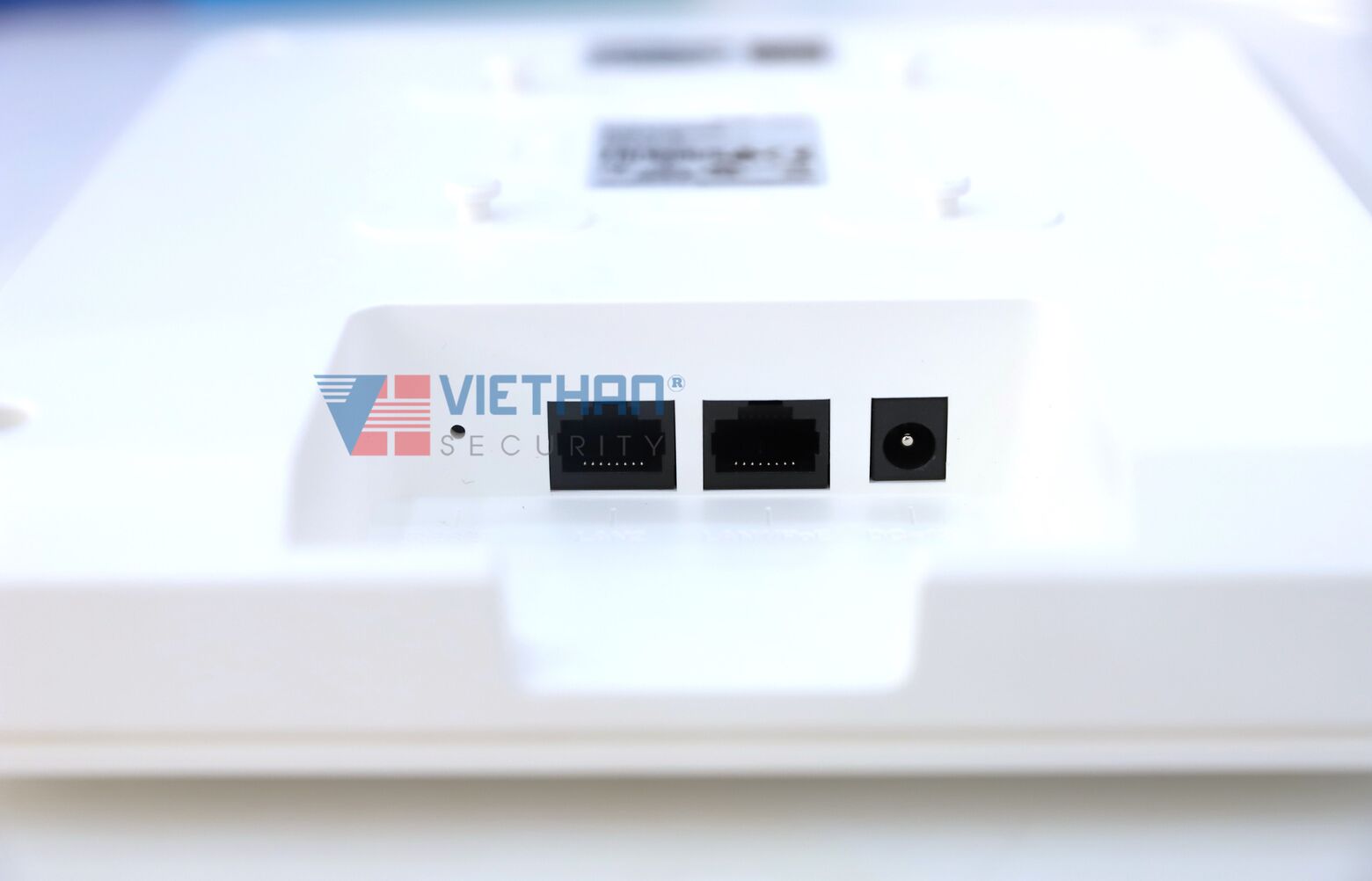

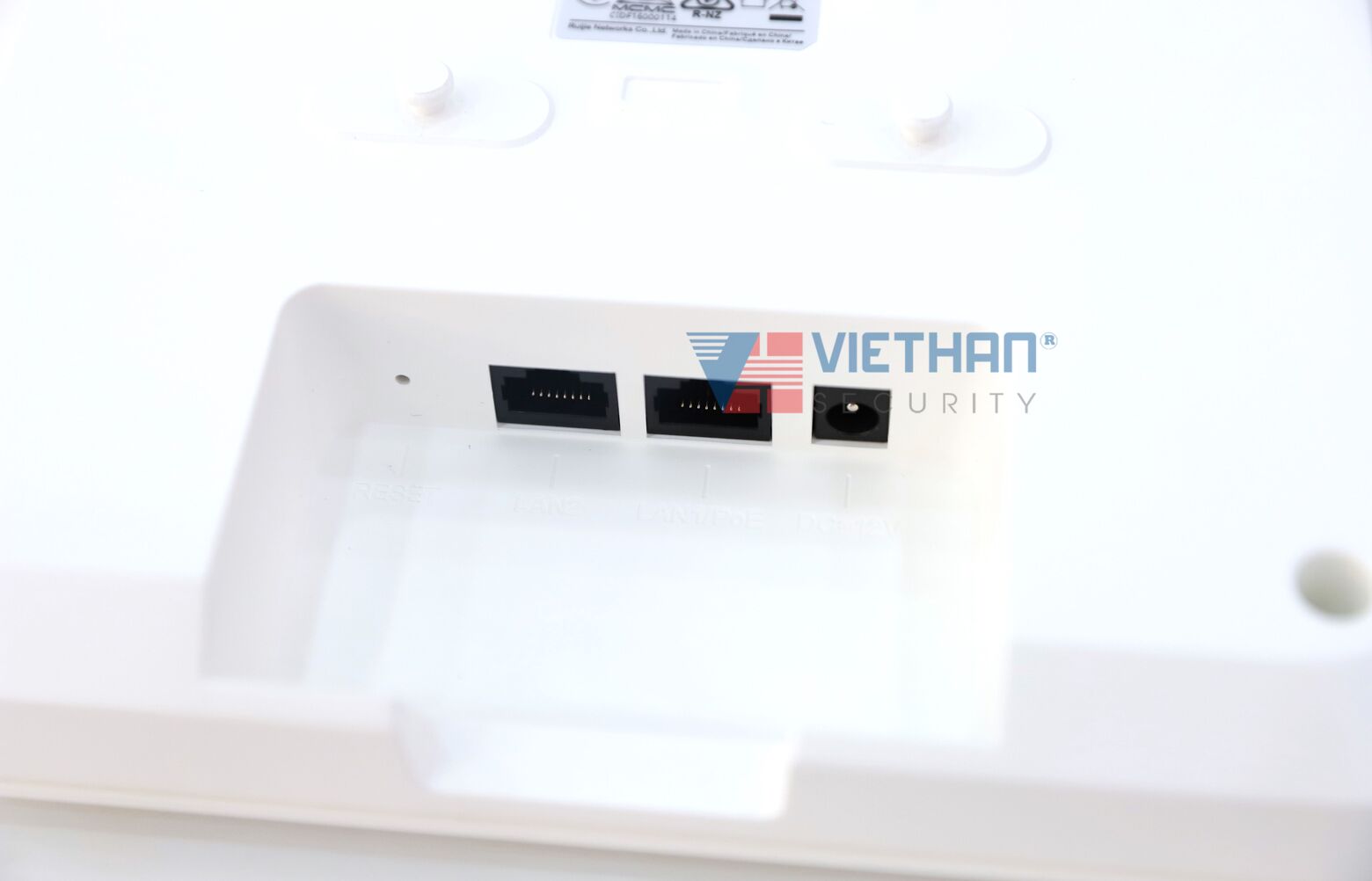

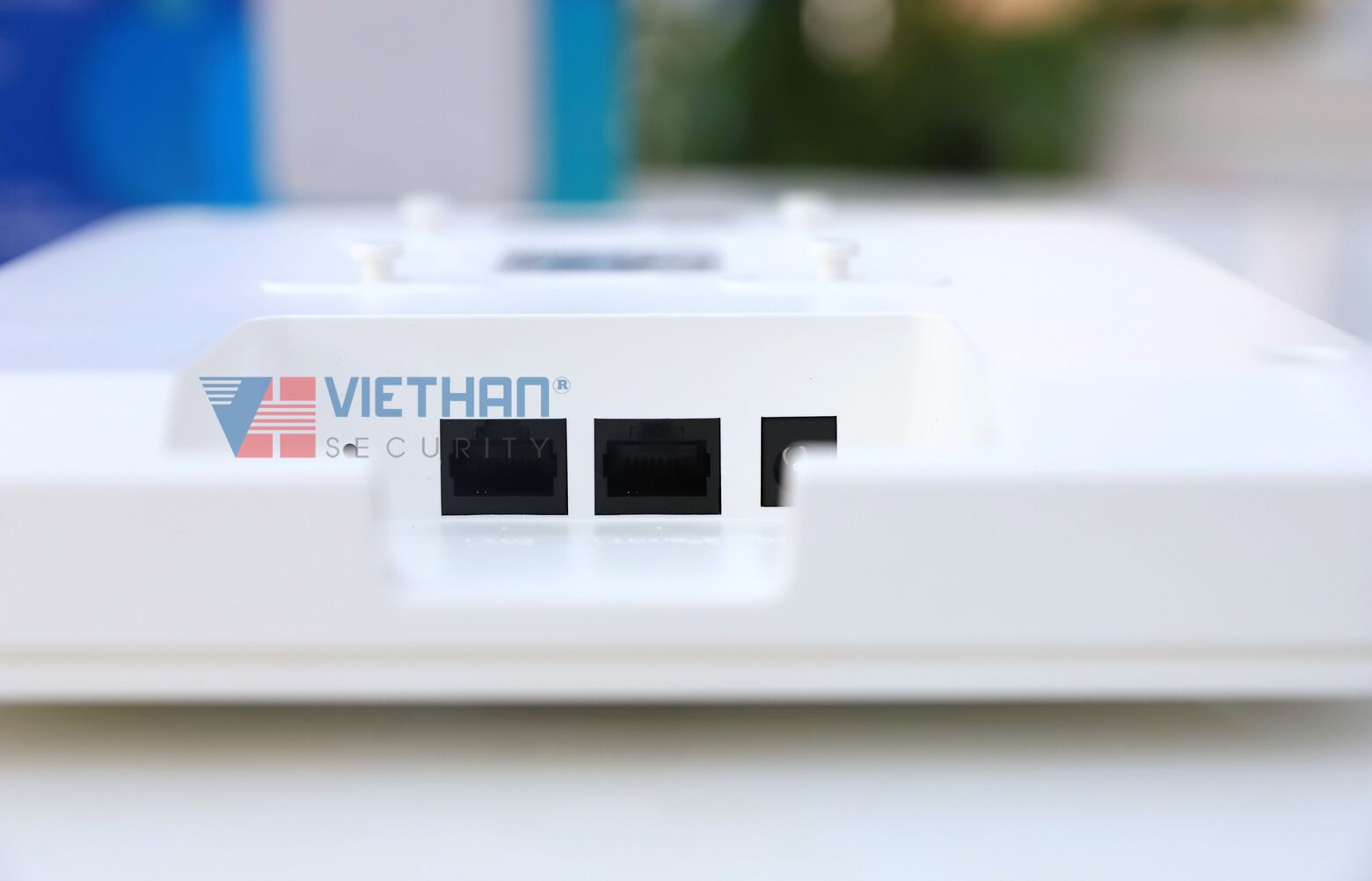

Service Ports | 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE | |
Management Port | NA | |
LED Indicator | Single indicator (green light) | |
Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE |
|
Power Consumption | ≤ 15.3W | |
Environment
|
Operating temperature: 0°C~40°C | |
Storage temperature: -40°C~70°C | ||
Operating humidity: 5%~95%(non-condensing) | ||
Storage humidity: 5%~95%(non-condensing) | ||

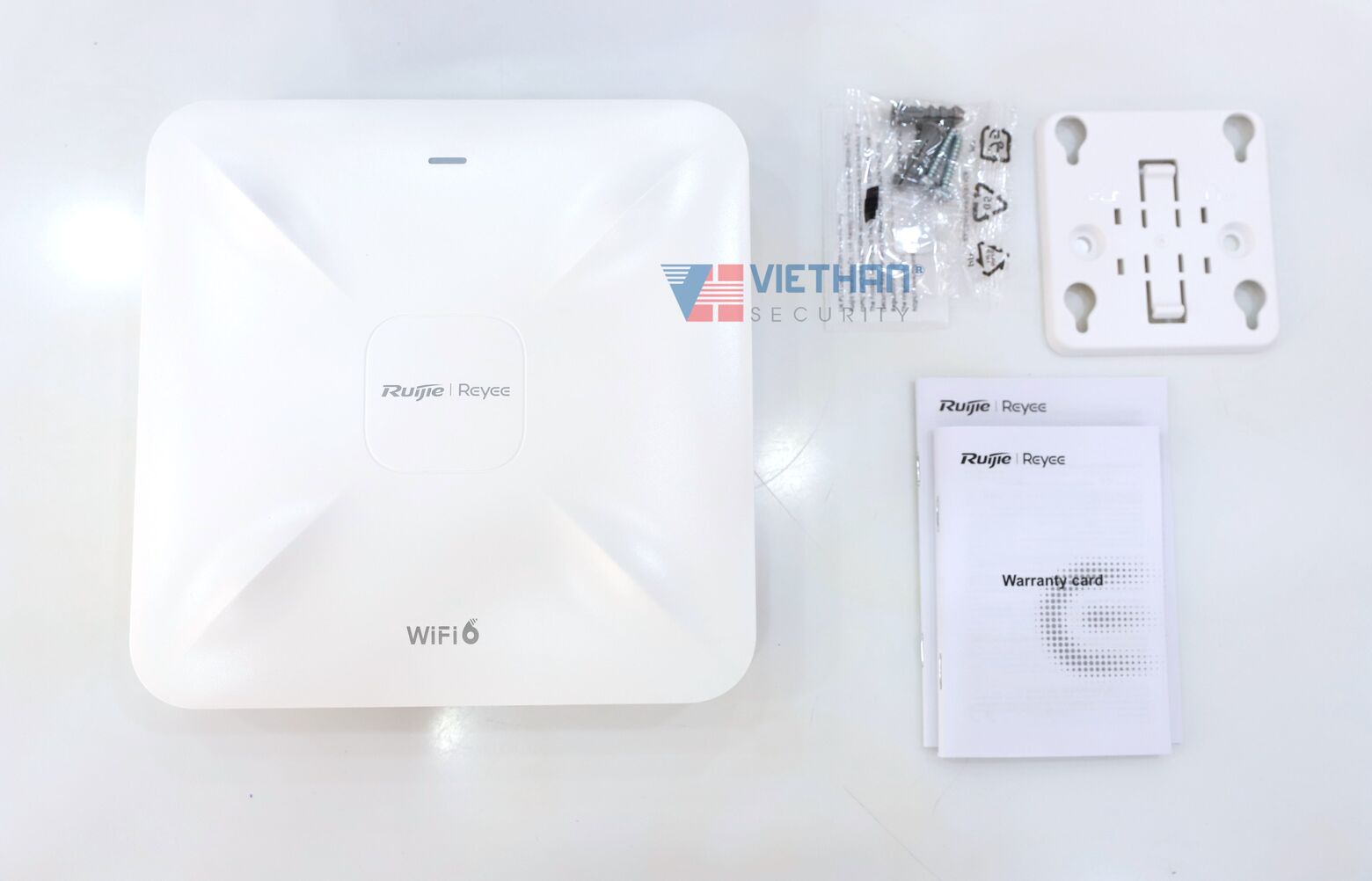

Installation | Ceiling/wall-mountable | |
Safety Standard | GB4943, IEC 62368-1 | |
EMC Standard | GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035 | |
Vibration Standard | IEC61373 | |
Radio Standard | EN300 328, EN301 893 | |
MTBF | >400000H | |
Software Features | ||
Operating Mode | AP mode and routing mode | |
WLAN
|
Maximum number of clients: 512 | |
Recommended number of clients: 100 | ||
Up to 8 SSIDs | ||
Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
||
SSID-based and radio-based STA limit | ||
Support Layer 2 user isolation | ||
Roaming | Support Layer 2 and Layer 3 roaming | |
Security
|
Support PSK authentication | |
Support static blacklist and whitelist | ||
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | ||
Routing | Support static IP address, DHCP, PPPoE Dial Up | |
Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
|
Platform management features
|
Automatic RF adjustment via the platform | |
Unified configuration via the platform | ||
Unified monitoring via the platform |
