- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0.005 Lux @ (F2.0, AGC ON),0 Lux with light

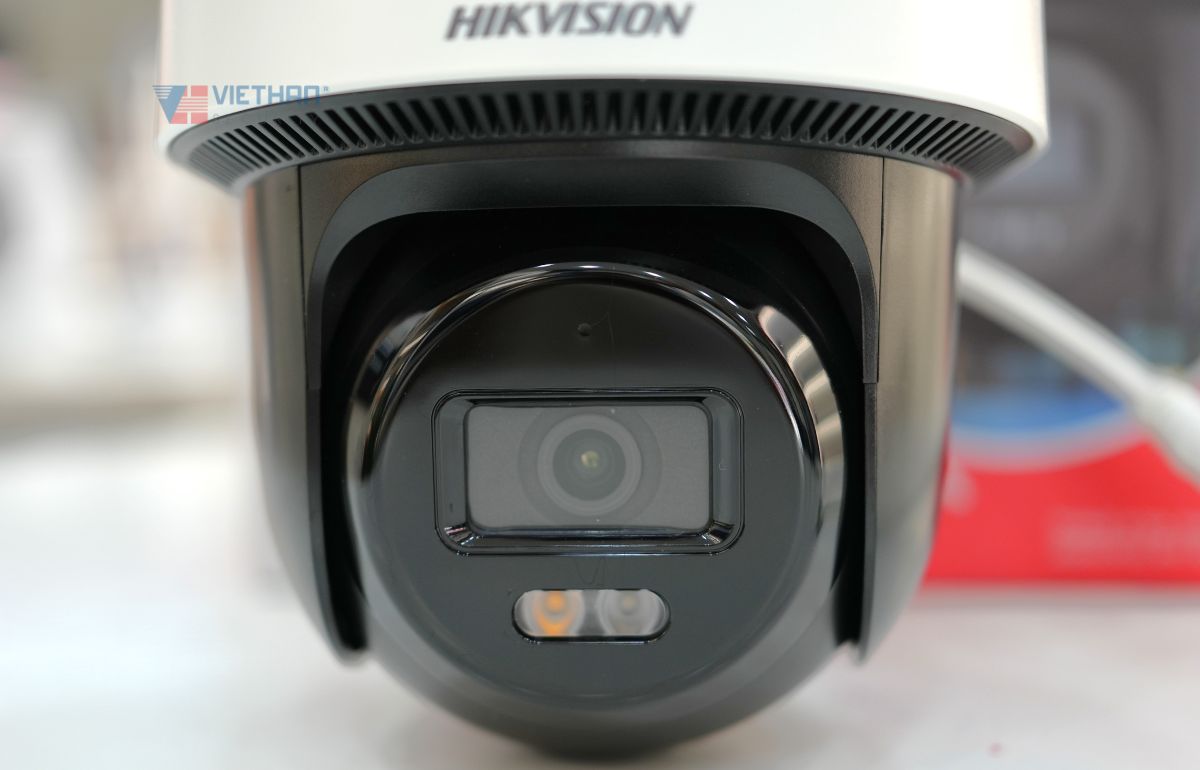

- Lens
- Focal Length2.8 mm, 4 mm
- FOV
2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°
4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
- ApertureF1.6

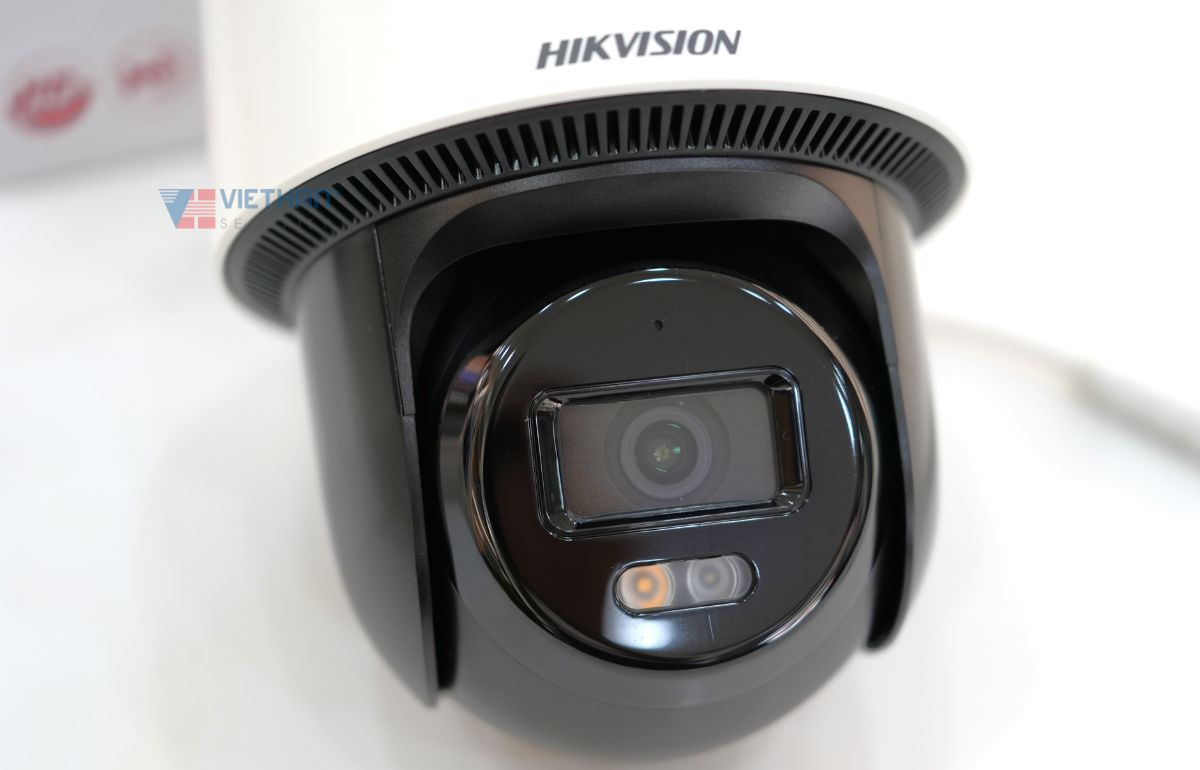

- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeWhite light distance: up to 30 m,IR distance: up to 30 m
- IR Wavelength850 nm
- PTZ
- Movement Range (Pan)0° to 345°
- Movement Range (Tilt)0° to 80°
- Pan SpeedUp to 25°/s
- Tilt SpeedUp to 20°/s
- Video
- Main Stream
50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360）
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video CompressionH.265, H.264, MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM//AAC-LC
- Audio Bit Rate16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
- Audio Sampling Rate8 kHz,16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- Image
- Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

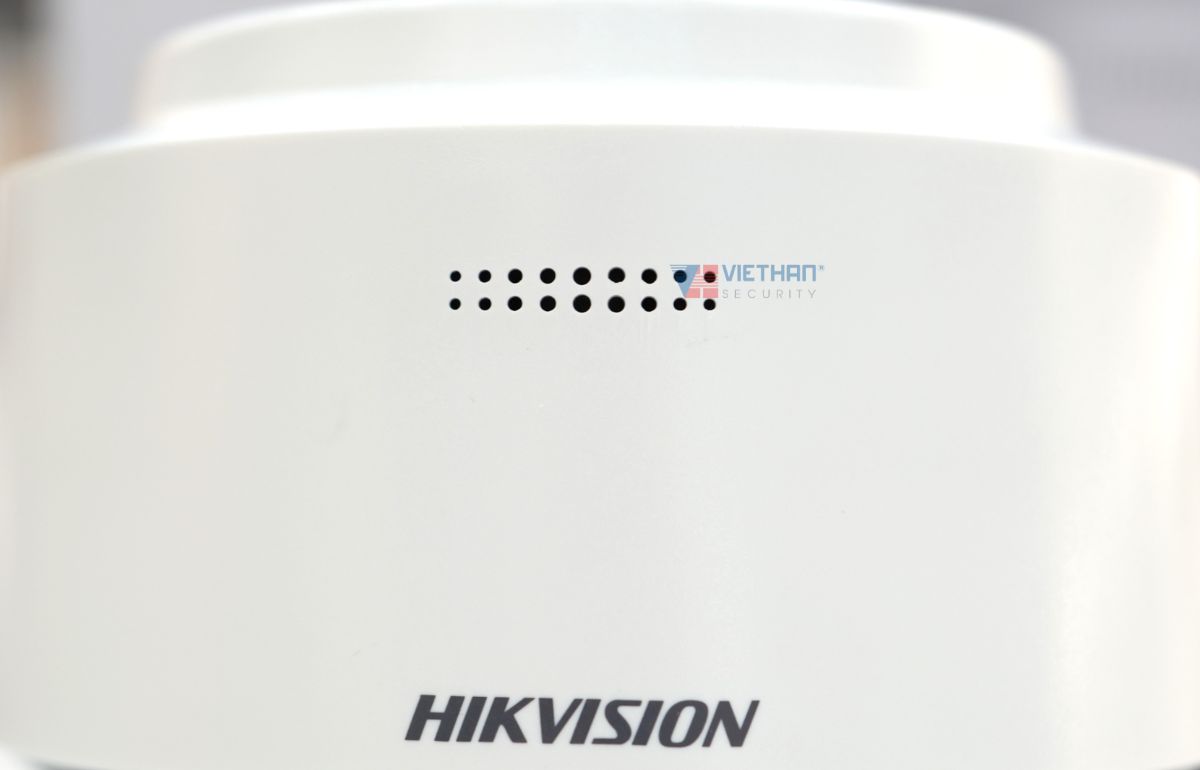

- Built-In Microphone1 built-in microphone

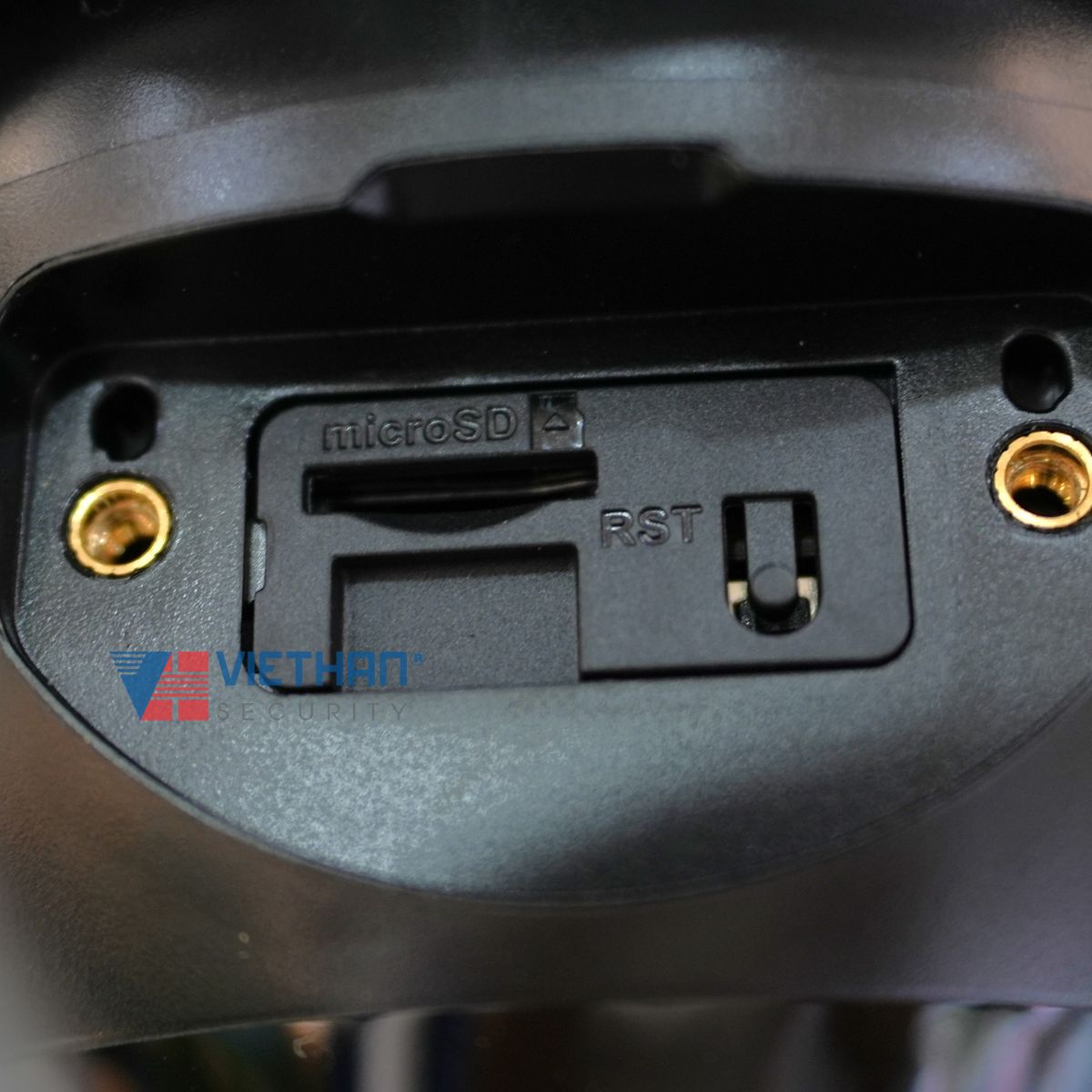

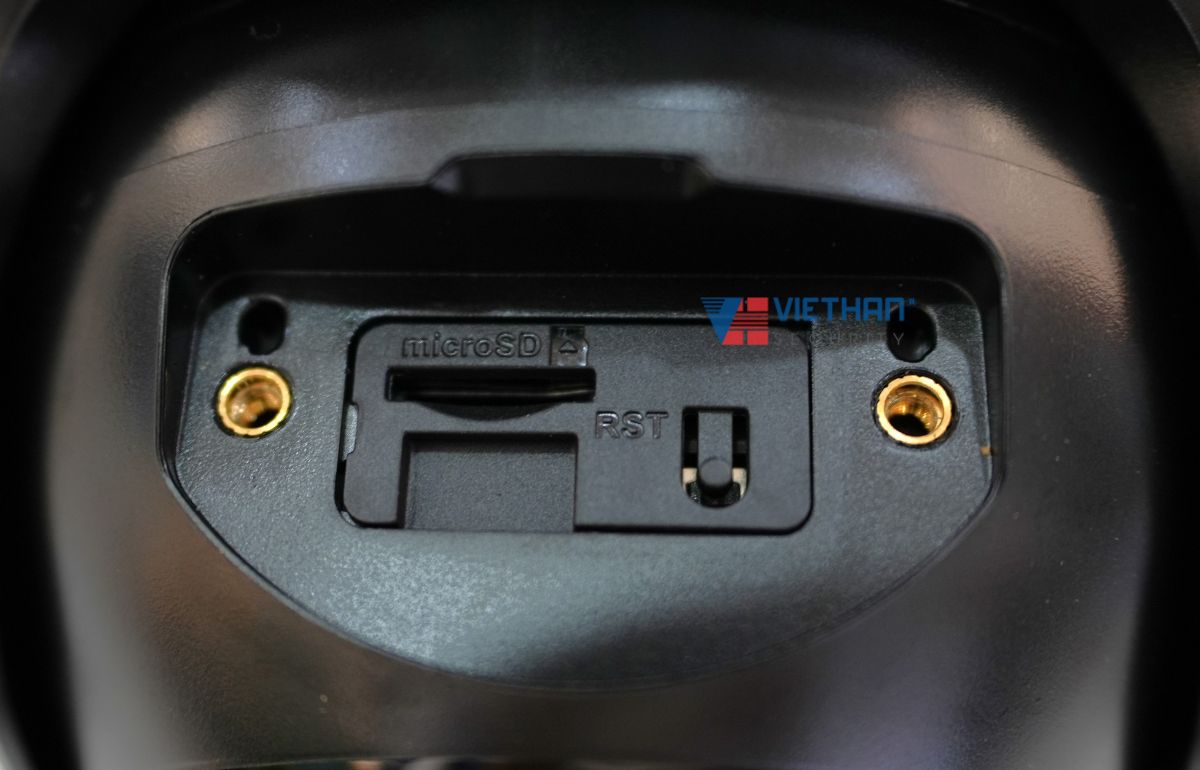

- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In Speaker1 built-in speaker
- Event
- Basic EventMotion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception
- LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite
- General
- Power
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W
- Dimension
Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19")
With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46" × 9.06")"
- Weight
Camera weight: 600 g (1.32 lb.)
With package weight: 900 g (2.0 lb.)

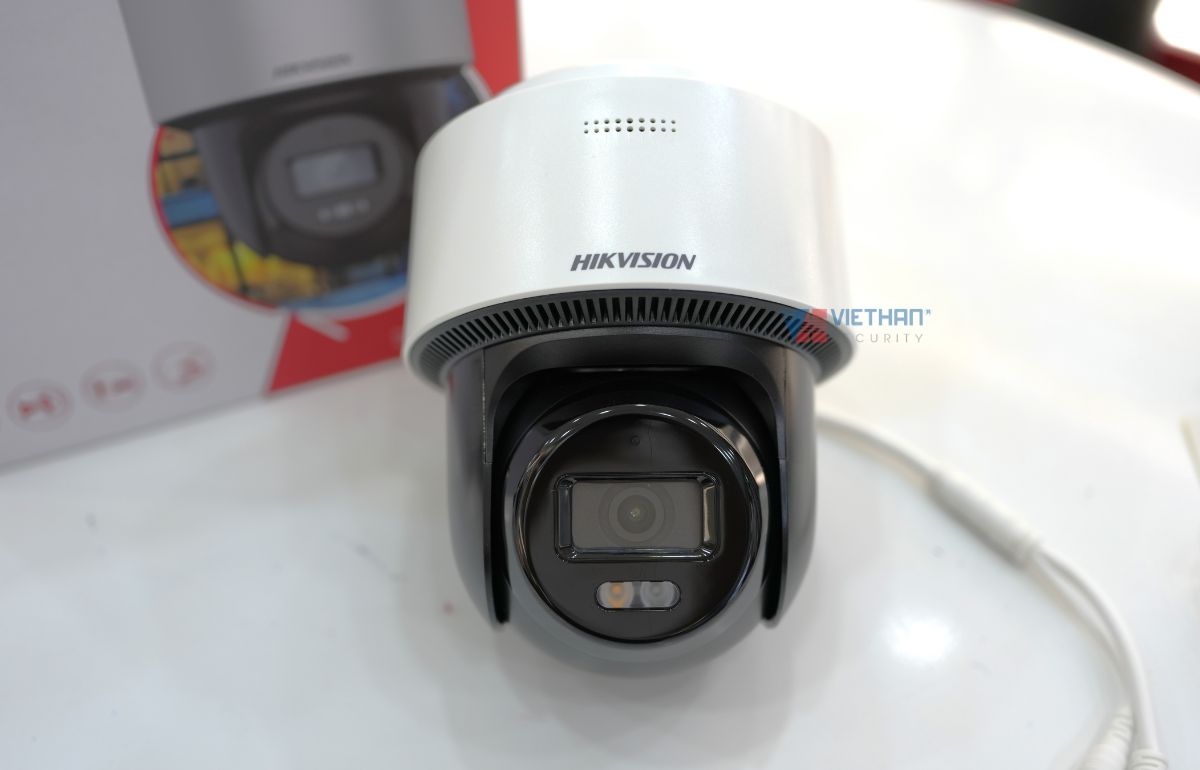

- MaterialPlastic
- Operating Condition-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
- General FunctionMirror, password protection, watermark
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
- SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
- EnvironmentCE-RoHS (2011/65/EU),Reach (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013)
